Description:

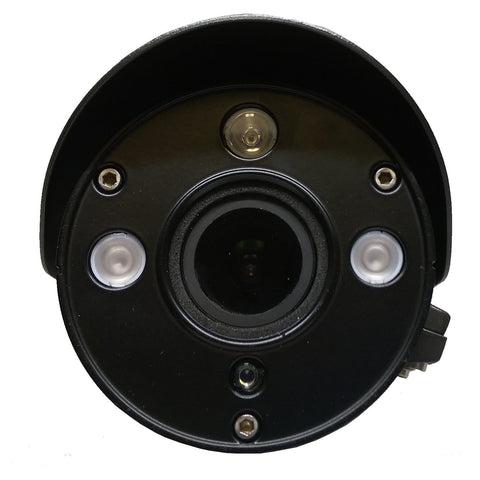

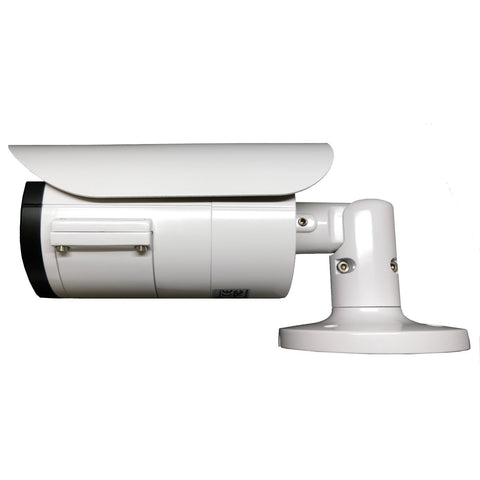

This 5MP Analog HD 4 in 1 dual voltage (DC 12V/ AC 24V) professional IR Bullet security camera employs 1/2.8″ Sony335 CMOS Image Sensor with 5 Megapixel Resolution and an advanced circuit design. It adopts advanced image processing technology. The resolution is as high as 5MP (2592x1944), which ensures clear and bright pictures.  It has OSD Menu that can change the 4 different video output HD-TVI, HD-AHD, HD-CVI, and CVBS (960H) and adjust the video setting. It also has WDR function. Built-in 2.8~12mm varifocal lens, effectively extend your observation range. With 6 pcs Smart IR infrared LEDs, it has 100ft (30meters) IR range, can change from color to black automatically and take clear picture during both day- and night-time. The Smart IR function also enables it to catch clear face picture during nigh time. The camera has IP66 fully weatherproof rate and vandal proof metal housing. It’s easy to install. It can protect your office or home effectively.

Feature Points:

• 4 IN 1 (HD-TVI, HD-AHD, HD-CVI, CVBS(1000TVL) HD technology produces 5MP Analog HD Video with Sharp and Detailed Images
• 1/2.8″ Sony335 CMOS Image Sensor with 5 Megapixel Resolution
• Built-in 2.8-12 mm Varicoal Lens and Captures Images over Large Areas
• HD-TVI Output: up to 5MP (2592x1944)@20/15fps
• HD-AHD Output: up to5MP (2592x1944)@20/15fps
• CVI Output: up to 4MP (2560x1440)@30/20fps
• CVBS Output: 960(H)/1000TVL
• Mini Illumination: 0 Lux (IR On)
• 100ft IR range; 4pcs IR infrared LEDs; Day/Night
• IP66 weatherproof; Vandal proof
• OSD Menu can change the 4 different video output (TVI, AHD, CVI, and CVBS) and adjust the video setting
• self-adaptive 2D/3D noise reduction
• WDR (Wide Dynamic Range) Function
• Smart IR technology: Reduces Over-exposure of the IR LEDs at the Center of the Image
• IR-Cut Filter: True day/night (ICR) Captures sharp, Clear Images in Low Light and at Night

• Power Supply: DC 12V/650mA, AC 24V/3.4W
• Dimension: 253(W) x 93(H) x 93(L) mm
• Applicable in Finance, Supermarkets, telecommunications, hotels, offices, corridors, stairs, garage and other indoor/outdoor monitoring sites.


Camera Default Setting is HD-TVI. User Friendly Joystick configuration button for video format switching and OSD (On Screen Display) menu access.

Push down on the joystick button to access the OSD menu to setup/fine tune the video performance and powerful function of the camera.

• Switch the output signal format by the joystick button (within 10 sec of power on)
  • SD CVBS: Push the joystick button towards the left for 5 seconds then release
  • HD-AHD: Push the joystick button towards the right for 5 seconds then release
  • HD-CVI: Push the joystick button up for 5 seconds then release
  • HD-TVI: Push the joystick button down for 5 seconds then release

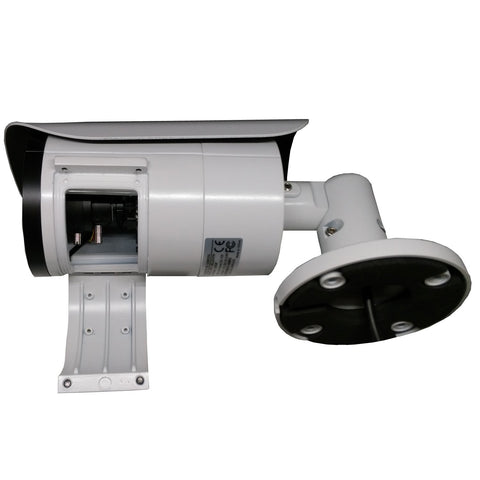

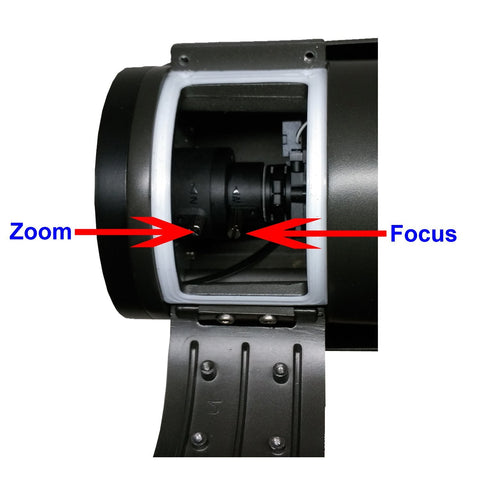

Easy Steps to adjust camera lens and focus:

 Specification:

Our 5MP 4in1 camera default setting is HD-TVI. If your system is not HD-TVI, please switch the camera to the same mode as your system does by using the joystick or OSD menu. You can also find the instruction for how to switch to 4 different mode in the user manual. or you are always welcome to contact us if you have any questions or need help. Thank you.

What's in the box?

• 5MP Analog HD 4 IN 1 IR Variable Lens Bullet Dual Voltage Security Camera x 1, User Manual, Screws, and Drill template.
