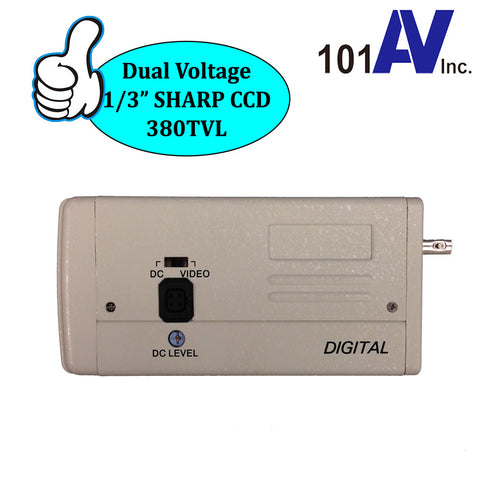

CCTV Box Camera 1/3” SHARP CCD 380TVL Dual Voltage 12V DC / 24V AC Security Color BNC (CC-3381N)

  • $ 1399
  • Save $ 3600

This color video camera employs 1/3" SHARP CCD image sensor with 310/270 k picture elements and equipped with digital signal processor for video signal processing to provide high quality and stable picture. Power supply and Lens not included.


Feature Points:

  • Resolution: 380 TV lines of horizontal resolution.
  • Low Lux: By employing high sensitivity image sensor and low noise circuit design produces 0.5 lux and signal-to-noise ratio of 48 dB.
  • White Balance: The wide range of Auto White Balance (AWB) allow the camera to automatically adjust the tone according to the color temperature of the light source illuminating the subject.
  • Back Light Compensation: Smart digital control Auto BLC, ensure for use against any unusual lighting conditions.
  • Auto Gain Control (AGC): Advanced Super AGC and AGC function built-in.
  • Dual Voltage: 12V DC  24V AC.
  • Internal synchronization.



Model No.


Power Requirements

DC12V  AC24V

Image Sensor


Sync System


Picture Elements

NTSC: 512x492

Scanning System

NTSC: 525 lines, 2:1 Interlace

Horizontal Resolution

380 TV Lines

Min Illumination

0.5 Lux @ F1.2

S/N Ratio


Aperture Correction

Horizontal & Vertical 2H Enhancer




Auto Iris Shutter

Auto Iris Mode: NTSC: 1/60 sec.

Auto Electronic Shutter

AES: 1/50(60) ~ 1/100,000 sec.

White balance


BL Compensation


Mirror function

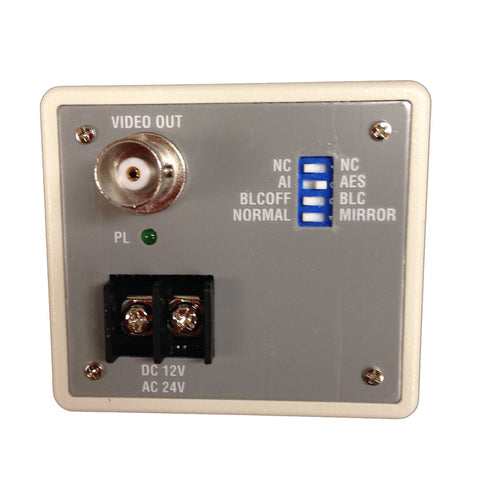

Video Output

1Vp-p, 75Ω Composite, BNC Connector

Auto Iris Lens

Accept VD/DC Servo Iris Lens

Operating Temperature

-10°C – 50°C (14°F – 122°F)




60 x 53 x 110 mm (W x H x D)


What's in the box?

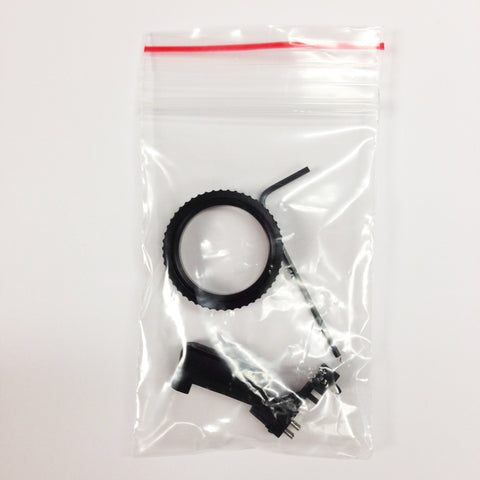

  • Box security camera x 1., user manual, accessories
